Wire Rope Thimble – BS Style

Mild steel.
Hot dipped galvanised finish.
Meets the performance requirements of BS EN 13411-1 and the withdrawn standard BS 464.
For use with wire ropes.

Certs available 2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order.

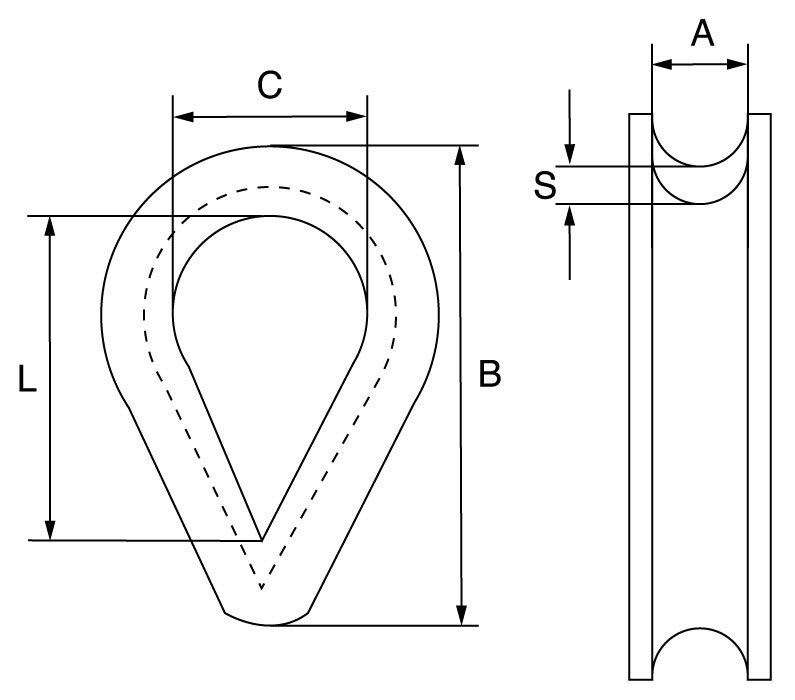

Product Code	Rope Dia	A	B	L	C	S	Weight
	inch	mm	mm	mm	mm	mm	kgs/100
TBS6	1/4	7	45	26	18	4	4.1
TBS8	5/16	8	54	33	22	4	6.5
TBS10	3/8	10	64	38	25	4.8	9.5
TBS12	1/2	14	80	44	32	5.6	13
TBS16	5/8	16	98	59	41	7.9	30
TBS19	3/4	21	124	73	51	9.5	51.5
TBS22	7/8	22	133	83	57	9.5	69.0
TBS25	1	27	162	108	70	10.3	99.5
TBS28	1 1/8	29	178	111	76	12.7	129
TBS32	1 1/4	33	197	133	95	12.7	145
TBS35	1 3/8	38	229	152	105	15.9	238
TBS38	1 1/2	41	254	165	114	17.5	340
TBS41	1 5/8	43	254	165	114	17.5	499
TBS44	1 3/4	51	286	178	127	25.4	532
TBS50	2	64	330	203	140	28.6	695
