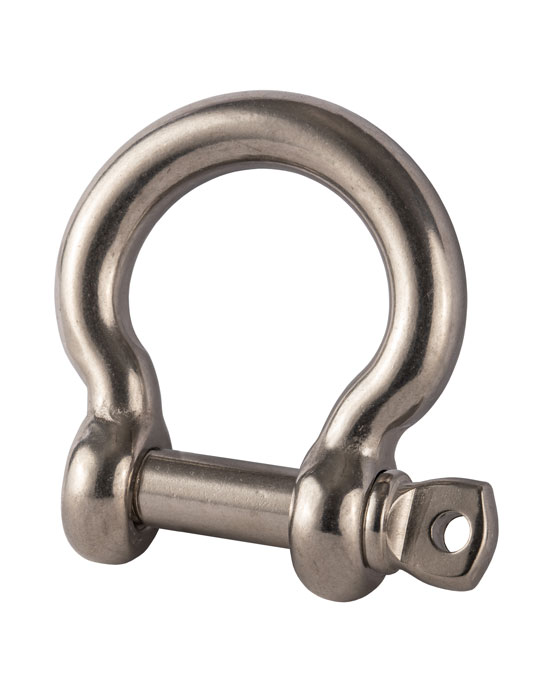

Stainless Steel Commercial Screw Pin Bow Shackle – SSBS
- AISI 316 stainless steel.
- Screw Collar Pin.
- Polished finish.
- Commercial quality, untested.
- Certs available
2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order.
| Product Code |
A |
B |
C |
D |
Weight |
|
mm |
mm |
mm |
mm |
kgs |
| SSBS4 |
4 |
4 |
8 |
16 |
0.01 |
| SSBS5 |
5 |
5 |
10 |
20 |
0.02 |
| SSBS6 |
6 |
6 |
12 |
24 |
0.024 |
| SSBS8 |
8 |
8 |
16 |
32 |
0.06 |
| SSBS10 |
10 |
10 |
20 |
40 |
0.13 |
| SSBS12 |
12 |
12 |
24 |
48 |
0.2 |
| SSBS16 |
16 |
16 |
32 |
64 |
0.5 |
