Onyx Grade 8 Eyenut – OG8EB
- Grade 8 alloy steel, quenched and tempered.
- Matte black painted.
- DIN 582 according to size.
- -20°C up to +200°C.
- M.B.L. equals 4 x W.L.L.
- Marked with ONYX, CE, material grade, size and traceability code.
- W.L.L. is based upon in line lifting only (see WLL chart for angles).
- Certs available
2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order. 3.1 Inspection certificate to EN 10204 – Type 3.1
Statement of compliance with the order, stating the results of material specific inspection. DoC UKCA / EC Declaration
In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.

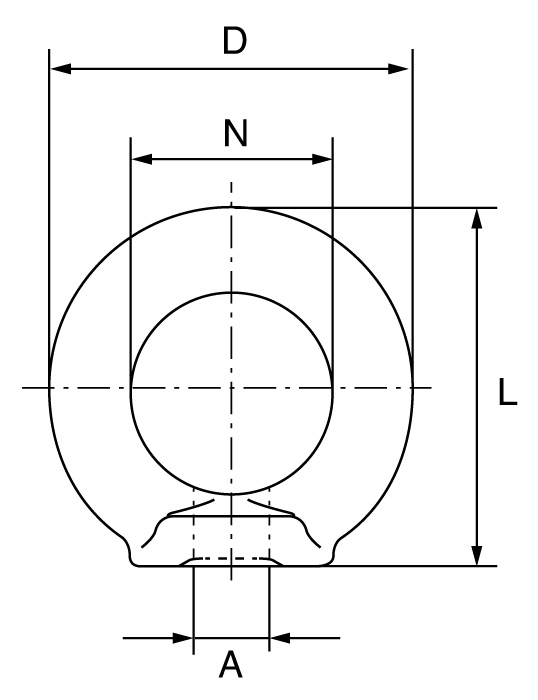

| Product Code | Part No. | W.L.L. | M | D | L | N | Weight | |
|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | kgs | |||
| OG8EN8 | 055-M8 | 0.8 | 8 | 36 | 36 | 20 | 0.05 |  |
| OG8EN10 | 055-M10 | 1 | 10 | 45 | 45 | 25 | 0.09 | |
| OG8EN12 | 055-M12 | 2 | 12 | 54 | 53 | 30 | 0.16 | |
| OG8EN16 | 055-M16 | 4 | 16 | 63 | 62 | 35 | 0.24 | |
