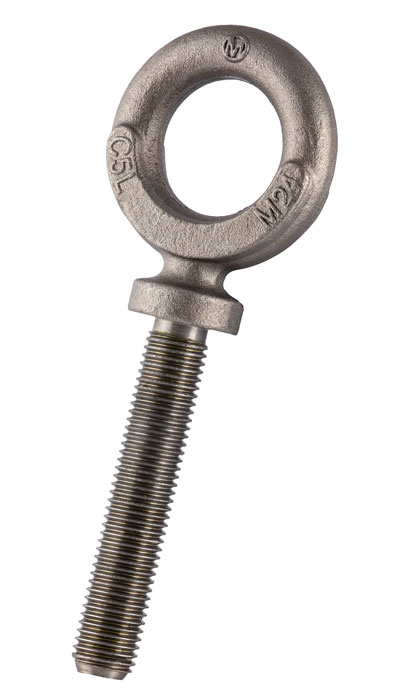

Long Shank Dynamo Eyebolt Metric Thread – EBDLSM
- Drop forged, high tensile steel, heat treated.
- Self colour and electro galvanised finish.
- Meets the W.L.L. performance requirements of BS 4278.
- Minimum breaking load is 5 times the W.L.L.
- Marked with CE, W.L.L, size and product ID mark.
- To be used for vertical lifting only.
- Certs available
2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order. DoC UKCA / EC Declaration
In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.
| Product Code | W.L.L. | A | E | F | G | H | B | D | Weight |
|---|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | mm | mm | mm | kgs | |
| EBDLSM8 | 0.15 | 8 | 22 | 9.5 | 27 | 100 | 19 | 6 | 0.11 |
| EBDLSM10 | 0.25 | 10 | 22 | 9.5 | 27 | 100 | 19 | 6 | 0.12 |
| EBDLSM12 | 0.32 | 12 | 29 | 11 | 35 | 100 | 25 | 8 | 0.17 |
| EBDLSM16 | 0.63 | 16 | 32 | 13 | 41 | 114 | 29 | 9.5 | 0.35 |
| EBDLSM20 | 1.25 | 20 | 41 | 16 | 54 | 127 | 35 | 11 | 0.6 |
| EBDLSM24 | 2 | 24 | 51 | 19 | 64 | 127 | 41 | 13 | 1.1 |
