J & F Closed Spelter Socket – SOC

Click to enlarge Click to enlarge
Dimensions
Attachments
Product Code Wire Rope Dia M.B.L. A B C D F G H J K L Weight
mm inch t mm mm mm mm mm mm mm mm mm mm kgs
SOC-01 6-7 1/4 4.5 114.3 12.7 38.1 22.4 9.7 17.5 39.6 57.1 12.7 44.5 0.23
SOC-02 8-10 5/16 - 3/8 12 125.2 15.8 42.9 24.6 12.7 20.6 42.9 57.2 17.5 52.3 0.34
SOC-03 11-13 7/16 - 1/2 20 139.7 17.5 50.8 29.6 14.2 23.9 50.8 63.5 22.4 58.7 0.68
SOC-04 14-16 9/16 - 5/8 30.8 160.3 20.6 66.8 35.8 17.5 28.5 60.5 76.2 25.4 63.5 1.13
SOC-05 18 3/4 43.5 193.6 26.9 76.2 42.2 22.4 31.8 69.9 88.9 31.8 77.7 1.92
SOC-06 20-22 7/8 65.3 222.3 31.8 92.2 49.3 25.4 38.1 82.6 101.6 38.1 88.9 3.28
SOC-07 24-26 1 81.6 251 35.1 104.9 58.4 28.7 44.5 95.3 114.3 44.5 101.8 4.76
SOC-08 28-30 1 1/8 100 279.4 38.1 114.3 65 31.8 50.8 104.9 127 50.8 114.3 6.46
SOC-09 32-35 1 1/4~3/8 136 307.1 41.4 127 71.4 38.1 57.2 121.6 139.7 57.2 127 8.95
SOC-10 38 1 1/2 170 354.1 49.3 136.7 81 41.4 69.9 133.3 152.4 63.5 152.4 13.2
SOC-11 40-42 1 5/8 188 384.3 54.1 146.1 82.6 44.5 76.2 139.7 165.1 69.9 165.1 16.3
SOC-12 44-48 1 3/4~1-7/8 268 438.2 55.6 171.5 95.3 50.8 79.5 162.5 190.5 76.2 192 26
SOC-13 50-54 2 - 2 1/8 309 501.7 62 193.8 111.3 57.2 95.3 187.5 215.9 82.6 223.8 35.8
SOC-14 56-60 2 1/4 - 2 3/8 360 546.1 69.9 218.9 127 66.8 104.9 210.4 228.6 92.2 247.7 47.6
SOC-15 64-67 2 1/2 - 2 5/8 424 596.7 79.3 241.3 139.7 73.2 114.3 235 247.7 101.6 269.8 63.5
SOC-16 70-73 2 3/4 - 2 7/8 549 644.4 79.3 273.1 158.8 79.3 124.0 258.8 279.4 124.0 285.8 99.8
SOC-17 75-80 3 - 3 1/8 656 688.9 85.6 292.1 171.5 85.9 133.4 282.1 304.8 133.4 298.5 125
SOC-18 82-86 3 1/4 - 3 3/8 750 743.0 101.6 311.2 184.2 92 146.1 311.2 330.2 146.1 311.2 142
SOC-19 88-92 3 1/2 - 3 5/8 820 787.4 101.6 330.2 196.9 98.6 160.3 330.2 355.6 158.8 330.2 181
SOC-20 94-102 3 3/4 - 4 1,005 844.6 108 362 215.9 108 184.2 362 381 177.8 355.6 246
Telephone: 01922 490220
Fax: 01922 490229
Email: office@gtlifting.co.uk
Registered Office:
George Taylor & Co. Lifting Gear (Midlands) Ltd
Unit 4, Fryers Road, Walsall WS2 7LZ
Registration Number: 1327793
More Branches
Follow Us
Follow us on FacebookFacebook
Follow us on InstagramInstagram
Follow us on LinkedInLinkedIn
Follow us on YouTubeYouTube
© 2026 George Taylor Lifting Gear
Terms & Conditions  |  Privacy Policy  |  Cookie Policy
Please note that George Taylor & Co. Lifting Gear are a trade only supplier and cannot deal directly with the end user of the product. If you are an end user and interested in our products, please get in touch with us and we will point your toward a GT stockist in your area
Got Any Questions?

    J & F Closed Spelter Socket – SOC

    Click to enlarge Click to enlarge
    • Hot dipped galvanised finish.
    • Sizes up to 1 1/8“ inclusive are produced with ZG270-500 steel.
    • Sizes from 1 1/4” above are produced with ZG35CrMo or ZG42CrMo steel.
    • Marked with Manufacturers ID, size and traceability code.
    • Certs available  2.1 Works certificate to EN 10204 – Type 2.1
      Statement of compliance with the order.        2.2 Works certificate to EN 10204
      Statement of compliance with the order, stating the results of non-specific inspection.        MPI Non-destructive testing report
      Statement of compliance with the order, stating the results of Magnetic Particle Inspection (M.P.I) in accordance with EN 10228-1. Can be type a and type b reports.        US Non-destructive testing report
      Statement of compliance with the order, stating the results of Magnetic Particle Inspection (M.P.I) in accordance with EN 10228-1. Can be type a and type b reports.

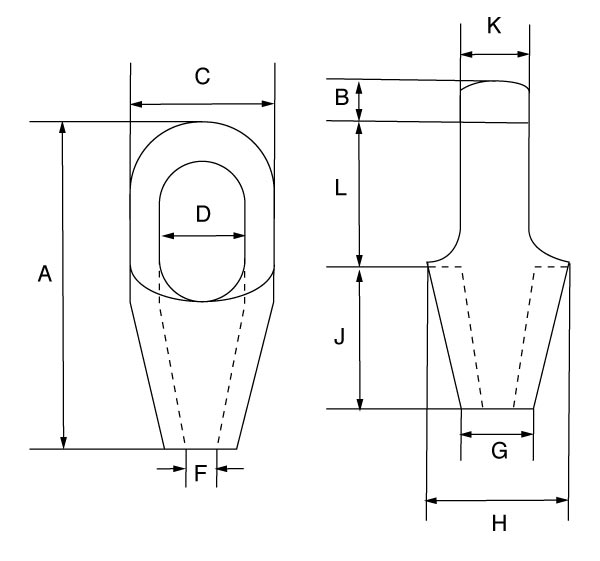

    Dimensions
    Attachments
    Product Code Wire Rope Dia M.B.L. A B C D F G H J K L Weight
    mm inch t mm mm mm mm mm mm mm mm mm mm kgs
    SOC-01 6-7 1/4 4.5 114.3 12.7 38.1 22.4 9.7 17.5 39.6 57.1 12.7 44.5 0.23
    SOC-02 8-10 5/16 - 3/8 12 125.2 15.8 42.9 24.6 12.7 20.6 42.9 57.2 17.5 52.3 0.34
    SOC-03 11-13 7/16 - 1/2 20 139.7 17.5 50.8 29.6 14.2 23.9 50.8 63.5 22.4 58.7 0.68
    SOC-04 14-16 9/16 - 5/8 30.8 160.3 20.6 66.8 35.8 17.5 28.5 60.5 76.2 25.4 63.5 1.13
    SOC-05 18 3/4 43.5 193.6 26.9 76.2 42.2 22.4 31.8 69.9 88.9 31.8 77.7 1.92
    SOC-06 20-22 7/8 65.3 222.3 31.8 92.2 49.3 25.4 38.1 82.6 101.6 38.1 88.9 3.28
    SOC-07 24-26 1 81.6 251 35.1 104.9 58.4 28.7 44.5 95.3 114.3 44.5 101.8 4.76
    SOC-08 28-30 1 1/8 100 279.4 38.1 114.3 65 31.8 50.8 104.9 127 50.8 114.3 6.46
    SOC-09 32-35 1 1/4~3/8 136 307.1 41.4 127 71.4 38.1 57.2 121.6 139.7 57.2 127 8.95
    SOC-10 38 1 1/2 170 354.1 49.3 136.7 81 41.4 69.9 133.3 152.4 63.5 152.4 13.2
    SOC-11 40-42 1 5/8 188 384.3 54.1 146.1 82.6 44.5 76.2 139.7 165.1 69.9 165.1 16.3
    SOC-12 44-48 1 3/4~1-7/8 268 438.2 55.6 171.5 95.3 50.8 79.5 162.5 190.5 76.2 192 26
    SOC-13 50-54 2 - 2 1/8 309 501.7 62 193.8 111.3 57.2 95.3 187.5 215.9 82.6 223.8 35.8
    SOC-14 56-60 2 1/4 - 2 3/8 360 546.1 69.9 218.9 127 66.8 104.9 210.4 228.6 92.2 247.7 47.6
    SOC-15 64-67 2 1/2 - 2 5/8 424 596.7 79.3 241.3 139.7 73.2 114.3 235 247.7 101.6 269.8 63.5
    SOC-16 70-73 2 3/4 - 2 7/8 549 644.4 79.3 273.1 158.8 79.3 124.0 258.8 279.4 124.0 285.8 99.8
    SOC-17 75-80 3 - 3 1/8 656 688.9 85.6 292.1 171.5 85.9 133.4 282.1 304.8 133.4 298.5 125
    SOC-18 82-86 3 1/4 - 3 3/8 750 743.0 101.6 311.2 184.2 92 146.1 311.2 330.2 146.1 311.2 142
    SOC-19 88-92 3 1/2 - 3 5/8 820 787.4 101.6 330.2 196.9 98.6 160.3 330.2 355.6 158.8 330.2 181
    SOC-20 94-102 3 3/4 - 4 1,005 844.6 108 362 215.9 108 184.2 362 381 177.8 355.6 246
