Viper Mini Chain Hoist – HSZ-D

High performance materials for extra durability.
Matt black finish.
Meets the W.L.L. performance requirements of BS EN 13157.
M.B.L. equals 4 x W.L.L.
Grade 80 (T – Fine tolerance calibrated) load chain, meets the W.L.L. performance requirements of BS EN 818-7.
Electro galvanised calibrated hand chain.
The sealed bearings in each unit ensure extra protection and allow complete repair flexibility.
Top and bottom hooks with heavy duty cast catches.
For heights of lift above 12 mtrs please consult GT Lifting for technical advice and product guidance.
Whilst fleeting or cross hauling is not recommended practice, these items can be used in accordance within the specific safety guidelines for this purpose: Check ‘Attachments’
Marked in accordance with BS EN 13157.

Certs available 2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order. DoC UKCA / EC Declaration
In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.

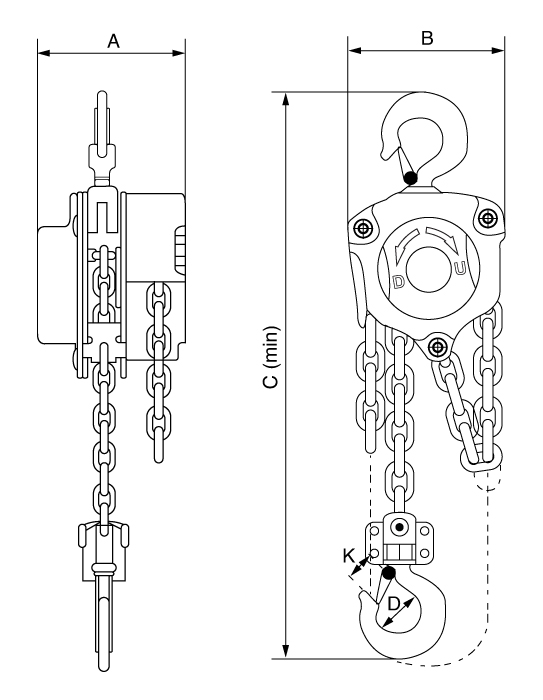

Product Code			Capacity	A	B	C (min)	D	K
3 mtr	6 mtr	Carcase	kgs	mm	mm	mm	mm	mm
VCB0.25T3	VCB0.25T6	VCB0.25TC	250	104	100	230	30	23

Technical Data

Capacity	Effort req'd to lift max load	Load Chain Dia	Falls of Load Chain	Weight (3 mtr HOL)	Extra Weight per mtr
kgs	N	mm		kgs	kgs
250	190	4 x 12	1	4.2	0.35
