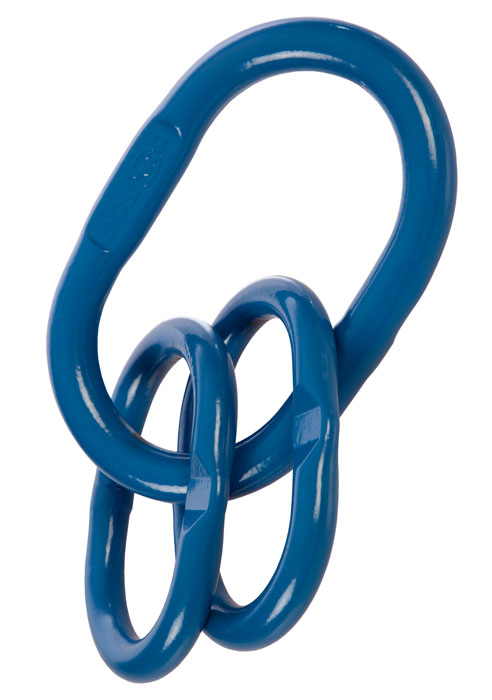

Green Pin Tycan® Grade 10 Quad Link Assembly – UMTS

Grade 10, high tensile alloy steel.
Blue painted finish.
Minimum breaking load is 4 times the W.L.L.
Temperature range -40ºC up to +200ºC.
Marked with material grade, manufacturers ID, size, product ID mark and traceability code.

Certs available 2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order. 3.1 Inspection certificate to EN 10204 – Type 3.1
Statement of compliance with the order, stating the results of material specific inspection. MTC Manufacturer test certificate
Statement of compliance with the order, stating results of tested samples from a production batch. Products not individually tested. DoC UKCA / EC Declaration
In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.

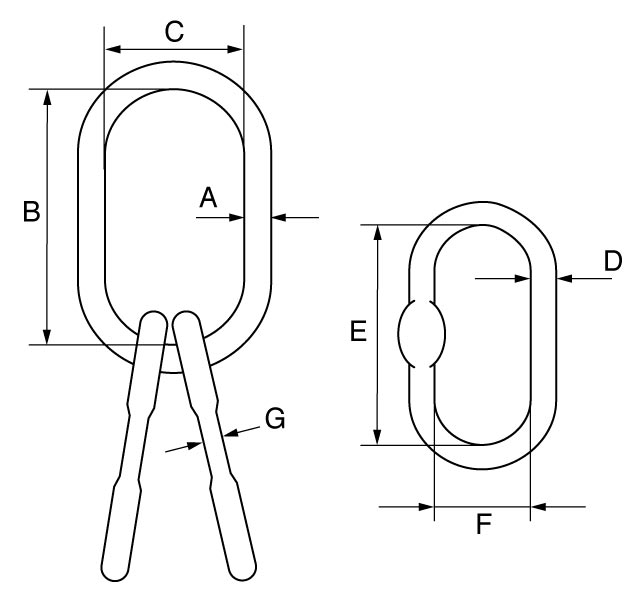

Product Code	Link Size	W.L.L.	A	B	C	D	E	F	G	Weight
	mm	t	mm	mm	mm	mm	mm	mm	mm	kgs
UMTS22	11 x 15	6.5	22	170	90	18	135	75	9	3.3
UMTS28	11 x 20/15 x 25	11	28	210	120	20	150	82	11	5.4
UMTS36	13 x 30	17.5	36	270	145	25	190	103	14	11.2
UMTS38	15 x 40	21.2	38	250	150	30	235	125	17	15.1
