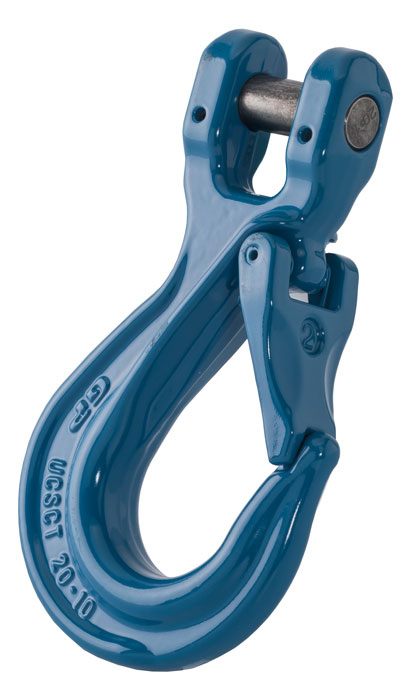

Green Pin Tycan® Grade 10 Clevis Sling Hook – GPUCSCT

Grade 10, high tensile alloy steel.
Blue painted finish.
Minimum breaking load is 4 times the W.L.L.
Temperature range -40ºC up to +200ºC.
Clevis fitting enables direct connection to chain.
Marked with material grade, manufacturers ID, size, product ID mark and traceability code.

Certs available 2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order. 3.1 Inspection certificate to EN 10204 – Type 3.1
Statement of compliance with the order, stating the results of material specific inspection. MTC Manufacturer test certificate
Statement of compliance with the order, stating results of tested samples from a production batch. Products not individually tested. DoC UKCA / EC Declaration
In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.

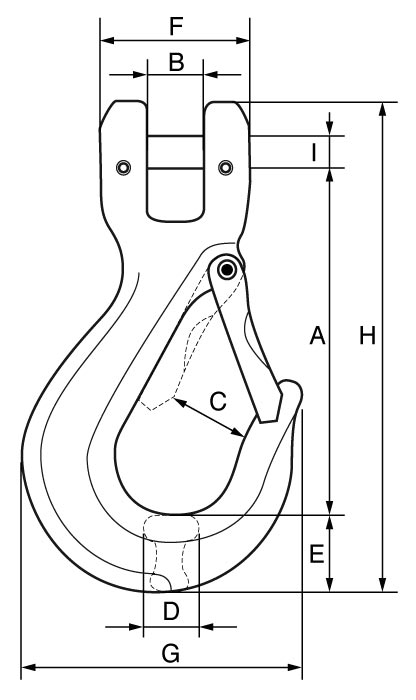

Product Code	Link Size	W.L.L.	A	B	C	D	E	F	G	H	I	Weight
	mm	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
GPUCSCT15	11 x 15	2.6	112	17	30	20	24	44	87	158	13	0.73
GPUCSCT20	11 x 20	4	129	22	33	24	29	57	106	186	16	1.31
GPUCSCT25	15 x 25	5	126	24	37	29	35	68	123	220	20	2.15
GPUCSCT30	13 x 30	6.8	159	32	37	32	39	74	133	235	20	2.56
