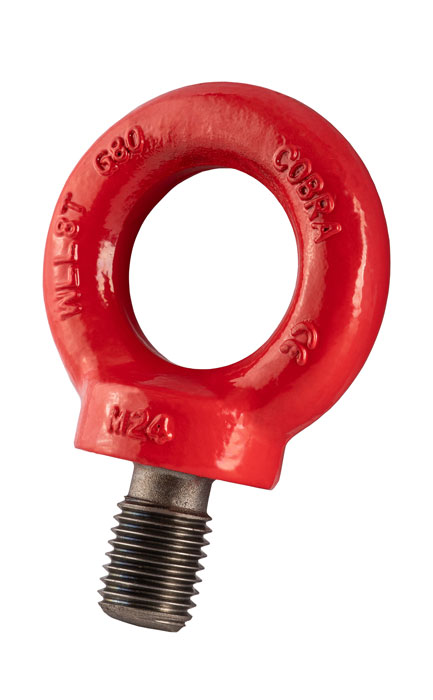

Grade 80 Eye Bolt – G80EB

Click to enlarge Click to enlarge


Code Model No W.L.L Vertical M D K L O Weight
(tonnes) (mm) (mm) (mm) (mm) (mm) (kgs/each)
G80EB6 SLR054-M6 0.4 6 28 13 42 16 0.05
G80EB8 SLR054-M8 1 8 36 15 51 20 0.06
G80EB10 SLR054-M10 1 10 45 18 63 25 0.11
G80EB12 SLR054-M12 2 12 54 22 75 30 0.18
G80EB16 SLR054-M16 4 16 63 28 88 35 0.28
G80EB20 SLR054-M20 6 20 72 30 101 40 0.45
G80EB24 SLR054-M24 8 24 90 38 128 50 0.87
G80EB30 SLR054-M30 12 30 108 45 154 60 1.66
G80EB36 SLR054-M36 16 36 126 55 183 70 2.65
G80EB42 SLR054-M42 24 42 144 65 212 80 4.03
G80EB48 SLR054-M48 32 48 166 70 238 90 6.38



Grade 80 Eye Bolt – G80EB

  • Grade 80 high strength alloy steel.
  • Red Painted finish.
  • Sizes based generally on Din 580 Eyebolts.
  • WLL is based upon in line lifting only.
  • Proof load 2 x WLL.
  • Safety factor: 4 to 1.
  • Marked with WLL, material grade, manufactures identification, CE, size.
  • For further clarification on reductions for non-axial loading, please consult George Taylor & Co.
  • Supplied with EC Declaration of Conformity.

Code Model No W.L.L Vertical M D K L O Weight
(tonnes) (mm) (mm) (mm) (mm) (mm) (kgs/each)
G80EB6 SLR054-M6 0.4 6 28 13 42 16 0.05
G80EB8 SLR054-M8 1 8 36 15 51 20 0.06
G80EB10 SLR054-M10 1 10 45 18 63 25 0.11
G80EB12 SLR054-M12 2 12 54 22 75 30 0.18
G80EB16 SLR054-M16 4 16 63 28 88 35 0.28
G80EB20 SLR054-M20 6 20 72 30 101 40 0.45
G80EB24 SLR054-M24 8 24 90 38 128 50 0.87
G80EB30 SLR054-M30 12 30 108 45 154 60 1.66
G80EB36 SLR054-M36 16 36 126 55 183 70 2.65
G80EB42 SLR054-M42 24 42 144 65 212 80 4.03
G80EB48 SLR054-M48 32 48 166 70 238 90 6.38
