Grade 10 Cartec Swivel Eyebolt with Ring – 800X – G10SLP

Grade 10 alloy steel.
Pink painted finish.
Designed, tested and certified in compliance with the technical directives GS-OA15-04 – BS EN 1677.
Minimum breaking load is 4 times the W.L.L.
Can be oriented at 360° with self aligning tilting ring at 180°.
On the axial pull there can be variation of +/-5° with a 10% decrease in capacity.
Not suitable for continuous rotation under load.
Full CAD support available upon request.

Certs available 2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order. DoC UKCA / EC Declaration
In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.

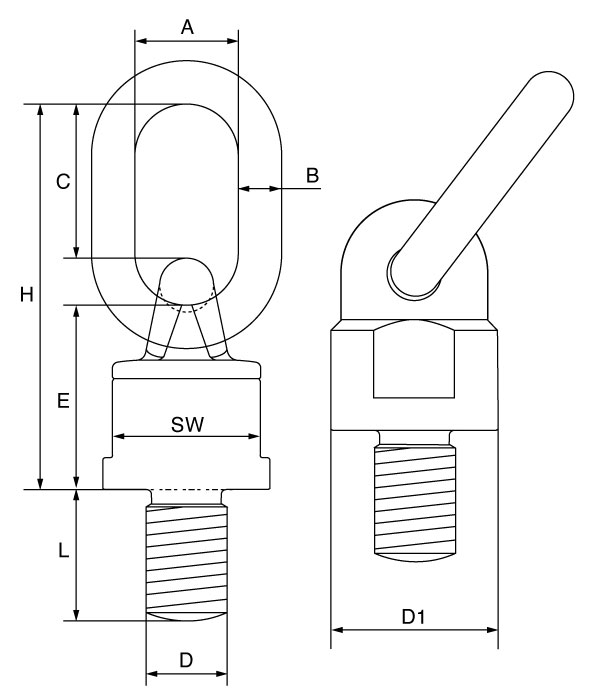

Product Code	D	L	W.L.L	A	B	C	E	D1	H	SW	Torque	Weight
	mm	mm	t	mm	mm	mm	mm	mm	mm	mm	Nm	kgs
G10SLP10180.5	M10	18	0.5	30	13	46	50	38	105	30	16	0.48
G10SLP12180.7	M12	18	0.7	30	13	46	50	38	105	30	28	0.5
G10SLP16201.4	M16	20	1.4	30	13	46	50	38	105	30	70	0.53
G10SLP20301.7	M20	30	1.7	30	13	46	50	38	105	30	135	0.53
G10SLP20302.5	M20	30	2.5	34	16	57	61	50	131	40	135	1.05
G10SLP24301.7	M24	30	1.7	30	13	46	50	38	105	30	230	0.53
G10SLP24304	M24	30	4	40	18	70	68	58	153	48	230	1.63
G10SLP30354	M30	35	4	40	18	70	68	58	153	48	465	1.63
G10SLP30356.7	M30	35	6.7	45	22	65	71	80	156	70	465	2.85
G10SLP30408	M30	45	8	50	23	91	86	90	200	80	465	4.4
G10SLP365410	M36	54	10	50	23	91	86	90	200	80	814	4.62
G10SLP426312.5	M42	63	12.5	50	23	91	86	90	200	80	1304	5.2
G10SLP456012.5	M45	60	12.5	50	23	91	86	90	200	80	1670	5.2
G10SLP487212.5	M48	72	12.5	50	23	91	86	90	200	80	1981	5.2
G10SLP456016	M45	60	16	70	32	120	112	100	262	100	1670	10.9
G10SLP486017	M48	60	17	70	32	120	112	100	262	100	1981	10.9
G10SLP567818	M56	78	18	70	32	120	112	100	262	100	3000	10.9
G10SLP649620	M64	96	20	70	32	120	112	100	262	100	4738	10.9
G10SLP649628	M64	96	28	90	45	124	165	140	333	140	4738	29
G10SLP7210831	M72	108	31.5	90	45	124	165	140	333	140	6913	29
G10SLP8012035	M80	120	35	90	45	124	165	140	333	140	9625	29
G10SLP9013540	M90	135	40	90	45	124	165	140	333	140	14000	29

Grade 10 alloy steel.
Pink painted finish.
Designed, tested and certified in compliance with the technical directives GS-OA15-04 – BS EN 1677.
Minimum breaking load is 4 times the W.L.L.
Can be oriented at 360° with self aligning tilting ring at 180°.
On the axial pull there can be variation of +/-5° with a 10% decrease in capacity.
Not suitable for continuous rotation under load.
Full CAD support available upon request.

Certs available 2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order. DoC UKCA / EC Declaration
In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.

Product Code	D	L	W.L.L	A	B	C	E	D1	H	SW	Torque	Weight
	mm	mm	t	mm	mm	mm	mm	mm	mm	mm	Nm	kgs
G10SLP10180.5	M10	18	0.5	30	13	46	50	38	105	30	16	0.48
G10SLP12180.7	M12	18	0.7	30	13	46	50	38	105	30	28	0.5
G10SLP16201.4	M16	20	1.4	30	13	46	50	38	105	30	70	0.53
G10SLP20301.7	M20	30	1.7	30	13	46	50	38	105	30	135	0.53
G10SLP20302.5	M20	30	2.5	34	16	57	61	50	131	40	135	1.05
G10SLP24301.7	M24	30	1.7	30	13	46	50	38	105	30	230	0.53
G10SLP24304	M24	30	4	40	18	70	68	58	153	48	230	1.63
G10SLP30354	M30	35	4	40	18	70	68	58	153	48	465	1.63
G10SLP30356.7	M30	35	6.7	45	22	65	71	80	156	70	465	2.85
G10SLP30408	M30	45	8	50	23	91	86	90	200	80	465	4.4
G10SLP365410	M36	54	10	50	23	91	86	90	200	80	814	4.62
G10SLP426312.5	M42	63	12.5	50	23	91	86	90	200	80	1304	5.2
G10SLP456012.5	M45	60	12.5	50	23	91	86	90	200	80	1670	5.2
G10SLP487212.5	M48	72	12.5	50	23	91	86	90	200	80	1981	5.2
G10SLP456016	M45	60	16	70	32	120	112	100	262	100	1670	10.9
G10SLP486017	M48	60	17	70	32	120	112	100	262	100	1981	10.9
G10SLP567818	M56	78	18	70	32	120	112	100	262	100	3000	10.9
G10SLP649620	M64	96	20	70	32	120	112	100	262	100	4738	10.9
G10SLP649628	M64	96	28	90	45	124	165	140	333	140	4738	29
G10SLP7210831	M72	108	31.5	90	45	124	165	140	333	140	6913	29
G10SLP8012035	M80	120	35	90	45	124	165	140	333	140	9625	29
G10SLP9013540	M90	135	40	90	45	124	165	140	333	140	14000	29
