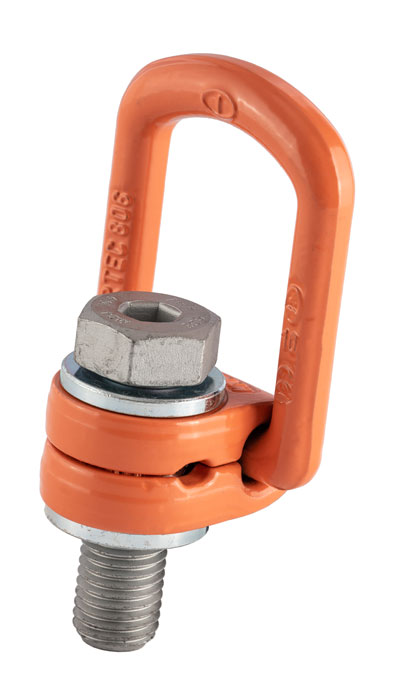

Grade 10 Cartec Rotating Eyebolt with Clamp – 806X – G10SHR

Grade 10 Alloy Steel.
Pink painted finish.
Designed, tested & certified in compliance with the technical directives GS-OA15-04 – EN 1677.
Minimum breaking load is 4 times the W.L.L.
Can be oriented at 360°.
The screw is protected with the GEOMET system which guarantees lasting protection in time.
Captive screws.
Eyebolts M36 and above are manufactured to allow use with universal hexagonal keys.
Not suitable for rotation under load.
Full CAD support available upon request.

Certs available 2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order. DoC UKCA / EC Declaration
In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.

Product Code	D	L	W.L.L.	A	B	C	M	E	F	G
	mm	mm	t	mm	mm	mm	mm	mm	mm	mm
G10SHR80.3	M8	15	0.3	57	34	10	78	24	41	30
G10SHR100.63	M10	15	0.63	57	34	10	78	24	41	30
G10SHR121	M12	23	1	66	38	13.5	85	30	50	36
G10SHR161.5	M16	24	1.5	66	38	13.5	85	30	50	36
G10SHR202.5	M20	31	2.5	87	55	16	111	48	68	44
G10SHR244	M24	37	4	87	55	16	111	48	68	44
G10SHR305	M30	45	5	109	66	22.5	145	54	91	65
G10SHR367	M36	50	7	109	66	22.5	145	54	91	55
G10SHR368	M36	59	8	109	78	28	190	62	108	81
G10SHR4210	M42	75	10	136	78	28	190	62	108	75
G10SHR4215	M42	62	15	169	97	36	242	68	131	89
G10SHR4820	M48	71	20	169	97	36	242	68	131	89

Product Code	H	I	J	K	W	Ch	Torque	Weight
	mm	mm	mm	mm	mm	mm	mm	kgs
G10SHR80.3	26.5	25	51	35	43	13	30	0.275
G10SHR100.63	26.5	25	51	35	42	17	60	0.29
G10SHR121	33	32	52	28	40	19	100	0.5
G10SHR161.5	33	32	52	28	38	24	150	0.51
G10SHR202.5	42.5	45	71	36	54	30	250	1.25
G10SHR244	42.5	45	71	36	51	36	400	1.3
G10SHR305	58.5	60	86	47	62	46	500	3.25
G10SHR367	58.5	60	86	43	60	55	700	3.3
G10SHR368	72.5	70	115	74	88	55	800	5.9
G10SHR4210	72.5	70	115	70	86	65	925	6.5
G10SHR4215	87.5	85	151	97	121	65	1500	11.2
G10SHR4820	87.5	95	151	93	117	75	2000	11.6

Grade 10 Alloy Steel.
Pink painted finish.
Designed, tested & certified in compliance with the technical directives GS-OA15-04 – EN 1677.
Minimum breaking load is 4 times the W.L.L.
Can be oriented at 360°.
The screw is protected with the GEOMET system which guarantees lasting protection in time.
Captive screws.
Eyebolts M36 and above are manufactured to allow use with universal hexagonal keys.
Not suitable for rotation under load.
Full CAD support available upon request.

Certs available 2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order. DoC UKCA / EC Declaration
In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.

Product Code	D	L	W.L.L.	A	B	C	M	E	F	G
	mm	mm	t	mm	mm	mm	mm	mm	mm	mm
G10SHR80.3	M8	15	0.3	57	34	10	78	24	41	30
G10SHR100.63	M10	15	0.63	57	34	10	78	24	41	30
G10SHR121	M12	23	1	66	38	13.5	85	30	50	36
G10SHR161.5	M16	24	1.5	66	38	13.5	85	30	50	36
G10SHR202.5	M20	31	2.5	87	55	16	111	48	68	44
G10SHR244	M24	37	4	87	55	16	111	48	68	44
G10SHR305	M30	45	5	109	66	22.5	145	54	91	65
G10SHR367	M36	50	7	109	66	22.5	145	54	91	55
G10SHR368	M36	59	8	109	78	28	190	62	108	81
G10SHR4210	M42	75	10	136	78	28	190	62	108	75
G10SHR4215	M42	62	15	169	97	36	242	68	131	89
G10SHR4820	M48	71	20	169	97	36	242	68	131	89

Product Code	H	I	J	K	W	Ch	Torque	Weight
	mm	mm	mm	mm	mm	mm	mm	kgs
G10SHR80.3	26.5	25	51	35	43	13	30	0.275
G10SHR100.63	26.5	25	51	35	42	17	60	0.29
G10SHR121	33	32	52	28	40	19	100	0.5
G10SHR161.5	33	32	52	28	38	24	150	0.51
G10SHR202.5	42.5	45	71	36	54	30	250	1.25
G10SHR244	42.5	45	71	36	51	36	400	1.3
G10SHR305	58.5	60	86	47	62	46	500	3.25
G10SHR367	58.5	60	86	43	60	55	700	3.3
G10SHR368	72.5	70	115	74	88	55	800	5.9
G10SHR4210	72.5	70	115	70	86	65	925	6.5
G10SHR4215	87.5	85	151	97	121	65	1500	11.2
G10SHR4820	87.5	95	151	93	117	75	2000	11.6
