Kito Grade 10 Quad Master Link Assembly – DG4 Series – G10DG4

Grade 10 alloy steel.
Grey painted finish.
Meets the W.L.L. performance requirements of BS EN 1677-4 +25% of loads.
Temp. Range: -40 °C to +400 °C. (Reductions in W.L.L apply).
Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
Specially designed for direct clevis connection of hooks to chain.

Certs available 2.1 Works certificate to EN 10204 – Type 2.1
Statement of compliance with the order. DoC UKCA / EC Declaration
In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.

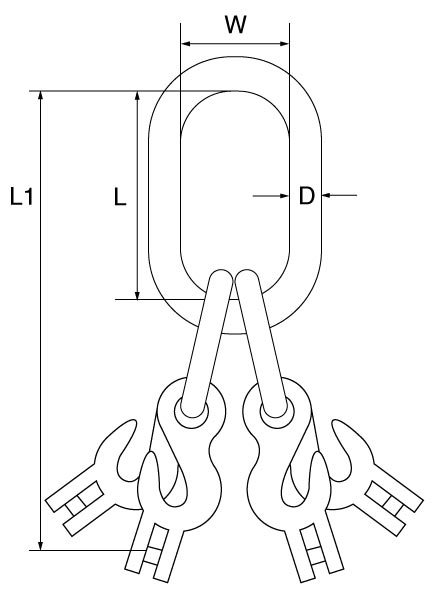

Product Code	Part No.	Chain Dia 3-4 legs	W.L.L.	M.P.F.	M.B.F.	D	L	L1	W	Weight
		mm	t	kN	kN	mm	mm	mm	mm	kgs
G10DG46	D18L13GI	6	3	73.6	118	19	135	283	75	2.46
G10DG48	D22L16GI	7/8	5.3	130	208	23	160	347	90	4.8
G10DG410	D26L20GI	10	8.4	206	330	27	180	413	100	8.6
G10DG413	D32L22GI	13	14	343	549	33	200	500	110	16.8
G10DG416	D38L26GI	16	21.2	520	832	38	275	647	150	29.3
