Kito Grade 10 Eye Sling Hook c/w Safety Latch – G10ESH

Click to enlarge Click to enlarge

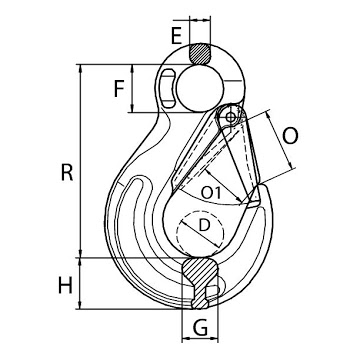

Dimensions
Attachments
Product Code Part No. Chain Dia D E F G H O O1 R
mm mm mm mm mm mm mm mm mm
G10ESH6 SHE6 6 18 10 20 16.5 21 25 19 84.5
G10ESH8 SHE7-8 7/8 24 11 25 19 27 32 25 106
G10ESH10 SHE10 10 30 16 34 26 33 40 31 131
G10ESH13 SHE13 13 38 19 43 33 42 48 39 164
G10ESH16 SHE16 16 44 25 50 40 50 55 45 182.5
G10ESH20 SHE19-20 19/20 53 27 55 48 54 61 54 205
G10ESH22 SHE22 22 60 29 60 50 61 71 61 225
G10ESH26 SHE26 26 72 36 70 60 69 84 73 265



Technical Data

Chain Dia W.L.L. M.P.F. M.B.F. Weight
mm t kN kN kgs
6 1.4 35.3 56.5 0.33
7/8 2.5 62.8 100 0.56
10 4 98.2 157 1.2
13 6.7 166 265 2.35
16 10 251 402 3.72
19/20 16 393 628 5.95
22 19 475 760 7.87
26 26.5 662 1,060 12.8
Telephone: 01922 490220
Fax: 01922 490229
Email: office@gtlifting.co.uk
Registered Office:
George Taylor & Co. Lifting Gear (Midlands) Ltd
Unit 4, Fryers Road, Walsall WS2 7LZ
Registration Number: 1327793
More Branches
Follow Us
Follow us on FacebookFacebook
Follow us on InstagramInstagram
Follow us on LinkedInLinkedIn
Follow us on YouTubeYouTube
© 2026 George Taylor Lifting Gear
Terms & Conditions  |  Privacy Policy  |  Cookie Policy
Please note that George Taylor & Co. Lifting Gear are a trade only supplier and cannot deal directly with the end user of the product. If you are an end user and interested in our products, please get in touch with us and we will point your toward a GT stockist in your area
Got Any Questions?

    Kito Grade 10 Eye Sling Hook c/w Safety Latch – G10ESH

    Click to enlarge Click to enlarge

    • Grade 10 alloy steel.
    • Grey painted finish.
    • Meets the W.L.L. performance requirements of BS EN 1677-2 +25% of loads.
    • Temp. Range: -40 °C to +400 °C. (Reductions in W.L.L apply).
    • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
    • Certs available  2.1 Works certificate to EN 10204 – Type 2.1
      Statement of compliance with the order.        DoC UKCA / EC Declaration
      In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.
    Dimensions
    Attachments
    Product Code Part No. Chain Dia D E F G H O O1 R
    mm mm mm mm mm mm mm mm mm
    G10ESH6 SHE6 6 18 10 20 16.5 21 25 19 84.5
    G10ESH8 SHE7-8 7/8 24 11 25 19 27 32 25 106
    G10ESH10 SHE10 10 30 16 34 26 33 40 31 131
    G10ESH13 SHE13 13 38 19 43 33 42 48 39 164
    G10ESH16 SHE16 16 44 25 50 40 50 55 45 182.5
    G10ESH20 SHE19-20 19/20 53 27 55 48 54 61 54 205
    G10ESH22 SHE22 22 60 29 60 50 61 71 61 225
    G10ESH26 SHE26 26 72 36 70 60 69 84 73 265



    Technical Data

    Chain Dia W.L.L. M.P.F. M.B.F. Weight
    mm t kN kN kgs
    6 1.4 35.3 56.5 0.33
    7/8 2.5 62.8 100 0.56
    10 4 98.2 157 1.2
    13 6.7 166 265 2.35
    16 10 251 402 3.72
    19/20 16 393 628 5.95
    22 19 475 760 7.87
    26 26.5 662 1,060 12.8
