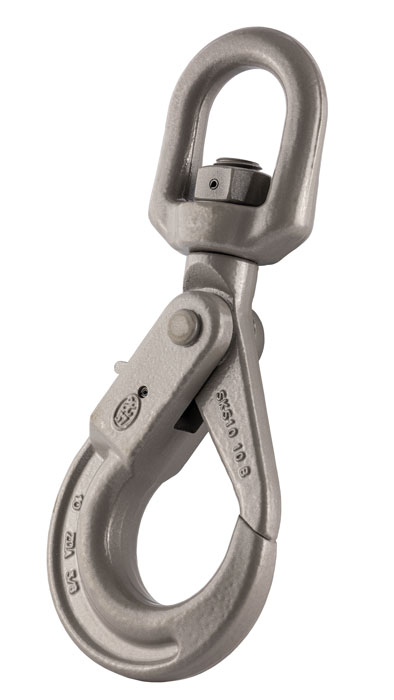

Kito Grade 10 Swivel Self Locking Hook – G10SSLH

Click to enlarge Click to enlarge

Dimensions
Attachments
Product Code Part No. Chain Dia D E F G H O R
mm mm mm mm mm mm mm mm
G10SSLH6 SKS6 6 35 13 35 16 20.5 28 160
G10SSLH8 SKS7-8 7/8 43.5 13 35 20 26 34 181
G10SSLH10 SKS10 10 56 16 42 24.5 30 45 218
G10SSLH13 SKS13 13 69 20 49 34.5 40 51.5 269
G10SSLH16 SKS16 16 80 24 60 35.5 50 60 319
G10SSLH20 SKS19-20 19/20 101 32 78 46 61 77 407
G10SSLH22 SKS22 22 110 35 86 51 67 84 448



Technical Data

Chain Dia W.L.L. M.P.F. M.B.F. Weight
mm t kN kN kgs
6 1.4 35.3 56.5 0.8
7/8 2.5 62.8 100 1.1
10 4 98.2 157 2
13 6.7 166 265 4
16 10 251 402 7.3
19/20 14 393 628 14.7
22 19 475 760 19.9
Telephone: 01922 490220
Fax: 01922 490229
Email: office@gtlifting.co.uk
Registered Office:
George Taylor & Co. Lifting Gear (Midlands) Ltd
Unit 4, Fryers Road, Walsall WS2 7LZ
Registration Number: 1327793
More Branches
Follow Us
Follow us on FacebookFacebook
Follow us on InstagramInstagram
Follow us on LinkedInLinkedIn
Follow us on YouTubeYouTube
© 2026 George Taylor Lifting Gear
Terms & Conditions  |  Privacy Policy  |  Cookie Policy
Please note that George Taylor & Co. Lifting Gear are a trade only supplier and cannot deal directly with the end user of the product. If you are an end user and interested in our products, please get in touch with us and we will point your toward a GT stockist in your area
Got Any Questions?

    Kito Grade 10 Swivel Self Locking Hook – G10SSLH

    Click to enlarge Click to enlarge

    • Grade 10 alloy steel.
    • Grey painted finish.
    • Meets the W.L.L. performance requirements of BS EN 1677-3 +25% of loads.
    • Temp. Range: -40 °C to +400 °C. (Reductions in W.L.L apply).
    • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
    • Certs available  2.1 Works certificate to EN 10204 – Type 2.1
      Statement of compliance with the order.        DoC UKCA / EC Declaration
      In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.
    Dimensions
    Attachments
    Product Code Part No. Chain Dia D E F G H O R
    mm mm mm mm mm mm mm mm
    G10SSLH6 SKS6 6 35 13 35 16 20.5 28 160
    G10SSLH8 SKS7-8 7/8 43.5 13 35 20 26 34 181
    G10SSLH10 SKS10 10 56 16 42 24.5 30 45 218
    G10SSLH13 SKS13 13 69 20 49 34.5 40 51.5 269
    G10SSLH16 SKS16 16 80 24 60 35.5 50 60 319
    G10SSLH20 SKS19-20 19/20 101 32 78 46 61 77 407
    G10SSLH22 SKS22 22 110 35 86 51 67 84 448



    Technical Data

    Chain Dia W.L.L. M.P.F. M.B.F. Weight
    mm t kN kN kgs
    6 1.4 35.3 56.5 0.8
    7/8 2.5 62.8 100 1.1
    10 4 98.2 157 2
    13 6.7 166 265 4
    16 10 251 402 7.3
    19/20 14 393 628 14.7
    22 19 475 760 19.9
