Kito Grade 10 Eye Grab Hook – G10EGH

Click to enlarge Click to enlarge

Dimensions
Attachments
Product Code Part No. Chain Dia E F G H O O1 R
mm mm mm mm mm mm mm mm
G10EGH6 GSE6 6 10.5 18 8 18 8.5 8 63.5
G10EGH8 GSE7-8 7/8 13.5 24 10 24.5 9.5 9 83
G10EGH10 GSE10 10 16 31 13 29.5 14 13.5 106
G10EGH13 GSE13 13 20 38 16 39 16.5 15.5 132
G10EGH16 GSE16 16 27 48 21.5 46 21.5 20 166
G10EGH20 GSE19-20 19/20 33 60 28 57.5 27 25 207
G10EGH22 GSE22 22 37 66 30 63 30 27 228
G10EGH26 GSE26 26 44 78 35 74.5 35.5 32.5 270



Technical Data

Chain Dia W.L.L. M.P.F. M.B.F. Weight
mm t kN kN kg
6 1.4 35.3 56.6 0.23
7/8 2.5 62.8 100 0.52
10 4 98.2 157 1
13 6.7 166 265 2.1
16 10 251 402 3.95
19/20 16 393 628 7.6
22 19 475 760 10.1
26 26.5 662 1,060 16.9
Telephone: 01922 490220
Fax: 01922 490229
Email: office@gtlifting.co.uk
Registered Office:
George Taylor & Co. Lifting Gear (Midlands) Ltd
Unit 4, Fryers Road, Walsall WS2 7LZ
Registration Number: 1327793
More Branches
Follow Us
Follow us on FacebookFacebook
Follow us on InstagramInstagram
Follow us on LinkedInLinkedIn
Follow us on YouTubeYouTube
© 2026 George Taylor Lifting Gear
Terms & Conditions  |  Privacy Policy  |  Cookie Policy
Please note that George Taylor & Co. Lifting Gear are a trade only supplier and cannot deal directly with the end user of the product. If you are an end user and interested in our products, please get in touch with us and we will point your toward a GT stockist in your area
Got Any Questions?

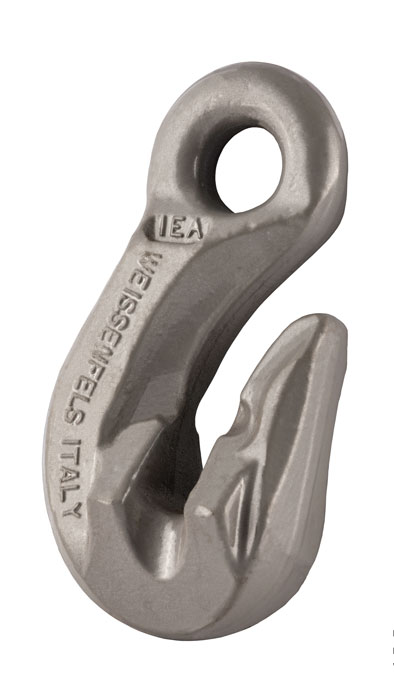

    Kito Grade 10 Eye Grab Hook – G10EGH

    Click to enlarge Click to enlarge

    • Grade 10 alloy steel.
    • Grey painted finish.
    • Meets the W.L.L. performance requirements of BS EN 1677-1 +25% of loads.
    • Temp. Range: -40 °C to +400 °C. (Reductions in W.L.L apply).
    • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
    • Certs available  2.1 Works certificate to EN 10204 – Type 2.1
      Statement of compliance with the order.        DoC UKCA / EC Declaration
      In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.
    Dimensions
    Attachments
    Product Code Part No. Chain Dia E F G H O O1 R
    mm mm mm mm mm mm mm mm
    G10EGH6 GSE6 6 10.5 18 8 18 8.5 8 63.5
    G10EGH8 GSE7-8 7/8 13.5 24 10 24.5 9.5 9 83
    G10EGH10 GSE10 10 16 31 13 29.5 14 13.5 106
    G10EGH13 GSE13 13 20 38 16 39 16.5 15.5 132
    G10EGH16 GSE16 16 27 48 21.5 46 21.5 20 166
    G10EGH20 GSE19-20 19/20 33 60 28 57.5 27 25 207
    G10EGH22 GSE22 22 37 66 30 63 30 27 228
    G10EGH26 GSE26 26 44 78 35 74.5 35.5 32.5 270



    Technical Data

    Chain Dia W.L.L. M.P.F. M.B.F. Weight
    mm t kN kN kg
    6 1.4 35.3 56.6 0.23
    7/8 2.5 62.8 100 0.52
    10 4 98.2 157 1
    13 6.7 166 265 2.1
    16 10 251 402 3.95
    19/20 16 393 628 7.6
    22 19 475 760 10.1
    26 26.5 662 1,060 16.9
