    Kito Grade 10 Clevis Sling Hook c/w Safety Catch – G10CSH

    Click to enlarge Click to enlarge

    • Grade 10 alloy steel.
    • Grey painted finish.
    • Meets the W.L.L. performance requirements of BS EN 1677-2 +25% of loads.
    • Temp. Range: -40 °C to +400 °C. (Reductions in W.L.L apply).
    • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
    • Certs available  2.1 Works certificate to EN 10204 – Type 2.1
      Statement of compliance with the order.        DoC UKCA / EC Declaration
      In accordance with the machinery directive 2006/42/EC and the latest amendments. Depending on product can be; UKCA and/or EC Declaration of: Conformity, Incorporation or General certificate.

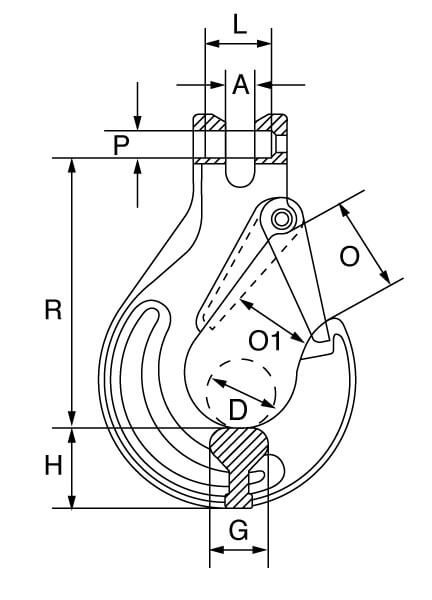

    Dimensions
    Attachments
    Product Code Part No. Chain Dia A D G H O O1 R P x L
    mm mm mm mm mm mm mm mm mm
    G10CSH6 SHC6 6 7 18 16.5 20 27 19 69 7.4 x 16.5
    G10CSH8 SHC7-8 7/8 9 25 19 28 33.5 26 94.5 9.5 x 23
    G10CSH10 SHC10 10 11.5 30 25 33 40 31 109 12.5 x 29.5
    G10CSH13 SHC13 13 14.5 38 30 40 50 39 135 16 x 37
    G10CSH16 SHC16 16 17.5 44 37 47 58 45 155 20 x 52
    G10CSH20 SHC19-20 19/20 23 52 51 52 61 53 183 24 x 73
    G10CSH22 SHC22 22 24.5 60 50 62 71 61 212 27 x 71



    Technical Data

    Chain Dia W.L.L. M.P.F. M.B.F. Weight
    mm t kN kN kgs
    6 1.4 35.3 56.5 0.27
    7/8 2.5 62.8 100 0.61
    10 4 98.2 157 1.12
    13 6.7 166 265 2
    16 10 251 402 3.4
    19/20 16 393 628 6.8
    22 19 475 760 9
