GC Aluminium Ferrule EN 13411-3 – AFGC

Click to enlarge Click to enlarge

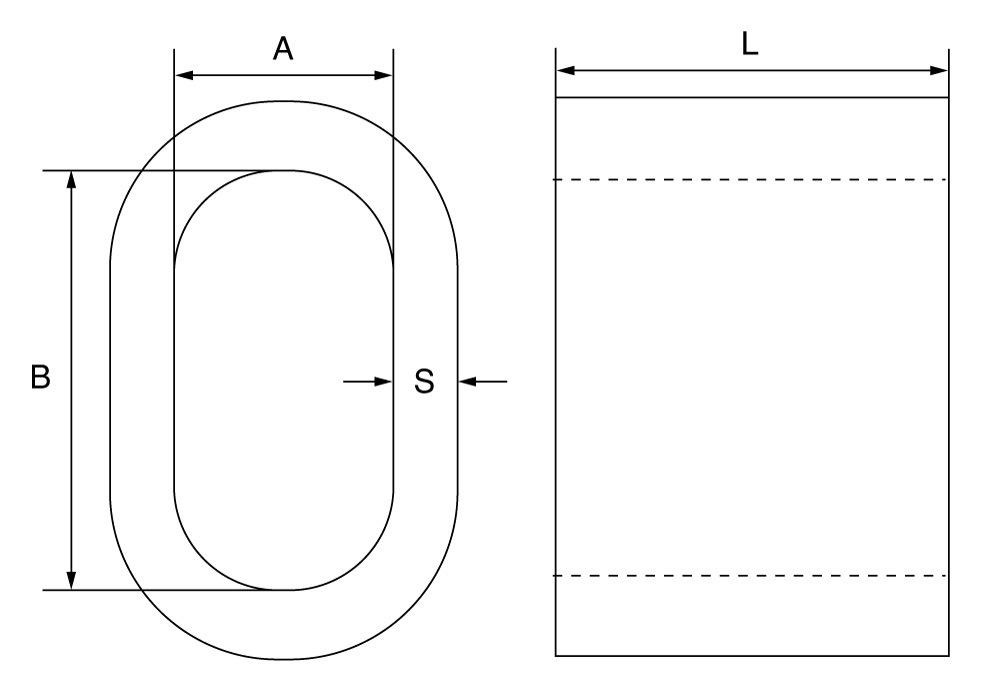

Dimensions
Attachments
Product Code Dia Fibre Core Dia IWRC A B S L Dia after swaging Packing Qty Weight
Nom. Dia mm mm mm mm mm mm mm pcs kgs/1000
AFGC2.5 2.5 - 2.7 2 - 2.4 2.7 5.4 1.05 9 5 38,000 0.5
AFGC3 2.8 - 3.2 2.5 - 2.7 3.3 6.6 1.25 11 6 20,000 0.84
AFGC3.5 3.3 - 3.7 2.8 - 3.2 3.8 7.6 1.5 13 7 14,000 1.32
AFGC4 3.8 - 4.3 3.3 - 3.7 4.4 8.8 1.7 14 8 9,000 1.81
AFGC5 4.9 - 5.4 4.4 - 4.8 5.5 11 2.1 18 10 5,000 3.57
AFGC6 5.5 - 6.4 4.9 - 5.4 6.6 13.2 2.5 21 12 3,000 5.86
AFGC6.5 5.5 - 6.9 5.5 - 6.4 7.2 14.4 2.7 23 13 2,000 7.55
AFGC7 7 - 7.4 6.5 - 6.9 7.8 15.6 2.9 25 14 1,700 9.53
AFGC8 7.5 - 8.4 7 - 7.4 8.8 17.6 3.3 28 16 1,100 13.7
AFGC9 8.5 - 9.5 7.5 - 8.4 9.9 19.8 3.7 32 18 750 19.8
AFGC10 9.6 - 10.5 8.5 - 9.5 10.9 21.8 4.1 35 20 550 26.4
AFGC11 10.6 - 11.6 9.6 - 10.5 12.1 24.2 4.5 39 22 450 35.8
AFGC12  11.7 - 12.6 10.6 - 11.6 13.2 26.4 4.9 42 24 350 45.8
AFGC13  12.7 - 13.7 11.7 - 12.6 14.2 28.4 5.4 46 26 250 59.7
AFGC14 13.8 - 14.7 12.7 - 13.7 15.3 30.6 5.8 49 28 210 73.5
AFGC16 14.8 - 15.8 13.8 - 14.7 17.5 35 6.7 56 32 150 111
AFGC18 16.9 - 18.9 14.8 - 16.8 19.6 39.2 7.6 63 36 100 159
AFGC20 19 - 21 16.9 - 18.9 21.7 43.4 8.4 70 40 75 217
AFGC22 21.1 - 23.1 19 - 21 24.3 48.6 9.2 77 44 50 292
AFGC24 23.2 - 25.2 21.1 - 23.1 26.4 52.8 10 84 48 40 376
AFGC26 25.3 - 27.3 23.2 - 24.9 28.5 57 10.9 91 52 35 481
AFGC28 27.4 - 29.4 25.3 - 27.3 31 62 11.7 98 56 28 603
AFGC30 29.5 - 31.5 27.4 - 29.4 33.1 66.2 12.5 105 60 24 739
AFGC32 31.6 - 33.6 29.5 - 31.5 35.2 70.4 13.4 112 64 21 897
AFGC34 33.7 - 35.7 31.6 - 33.6 37.8 75.6 14.2 119 68 15 1,080
AFGC36 35.8 - 37.8 33.7 - 35.7 39.8 79.6 15 126 72 15 1,275
AFGC38 37.9 - 39.9 35.8 - 37.8 41.9 83.8 15.8 133 76 15 1,490
AFGC40 40 - 42 37.9 - 39.5 44 88 16.6 140 80 13 1,734
AFGC42 42.1 - 43.9 39.6 - 40.5 46.2 92.4 17.5 147 84 11 2,020
AFGC44 44 - 46.2 40.6 - 42 48.4 96.8 18.3 154 88 10 2,314
AFGC46 46.3 - 47.9 42.1 - 44 50.6 101.2 19.2 161 92 8 2,557
AFGC48 48 - 50.3 44.1 - 46 52.8 105.6 20 168 96 6 3,010
AFGC50 50.4 - 52 46.1 - 48 55 110 20.8 175 100 6 3,400
AFGC52 52.1 - 54.6 48.1 - 50 57.2 114.4 21.6 182 104 6 3,813
AFGC54 54.7 - 56 50.1 - 52 59.4 118.8 22.5 189 108 4 4,120
AFGC56 56.1 - 58.8 52.1 - 54 61.6 123.2 23.3 196 112 - 4,772
AFGC58 58.9 - 60 54.1 - 56 63.8 127.6 24.2 203 116 - 5,200
AFGC60 60.1 - 63 56.1 - 58 66 132 25 210 120 - 5,800
